Flagship repair system
Epoxy Sleeve Repair System
ESRS
Permanent repair and strengthening system for pipelines — subsea, topside and onshore.
- Installation
- No shutdown, no hot work
- Design basis
- ASME Section VIII
- Environment
- Subsea · topside · onshore
- Subsea
- Diver-installable
01 / The defect, the system, the repair
The line stays in place.
-
01 · The defect
External corrosion and through-wall loss on a live line.
-
02 · Inside the system
Shells, seals, end clamps and fasteners, engineered for each pipeline.
-
03 · Epoxy Sleeve Repair System installed
The sleeve closes around the defect and is filled with epoxy. The line stays in place.
Product images: manufacturing partner. Illustrative.
02 / In the field
Installed onshore, topside and offshore.
-
Onshore · installationLower shell positioned under a live buried line. -
Offshore · mobilisationBend sleeve prepared on deck for subsea deployment. -

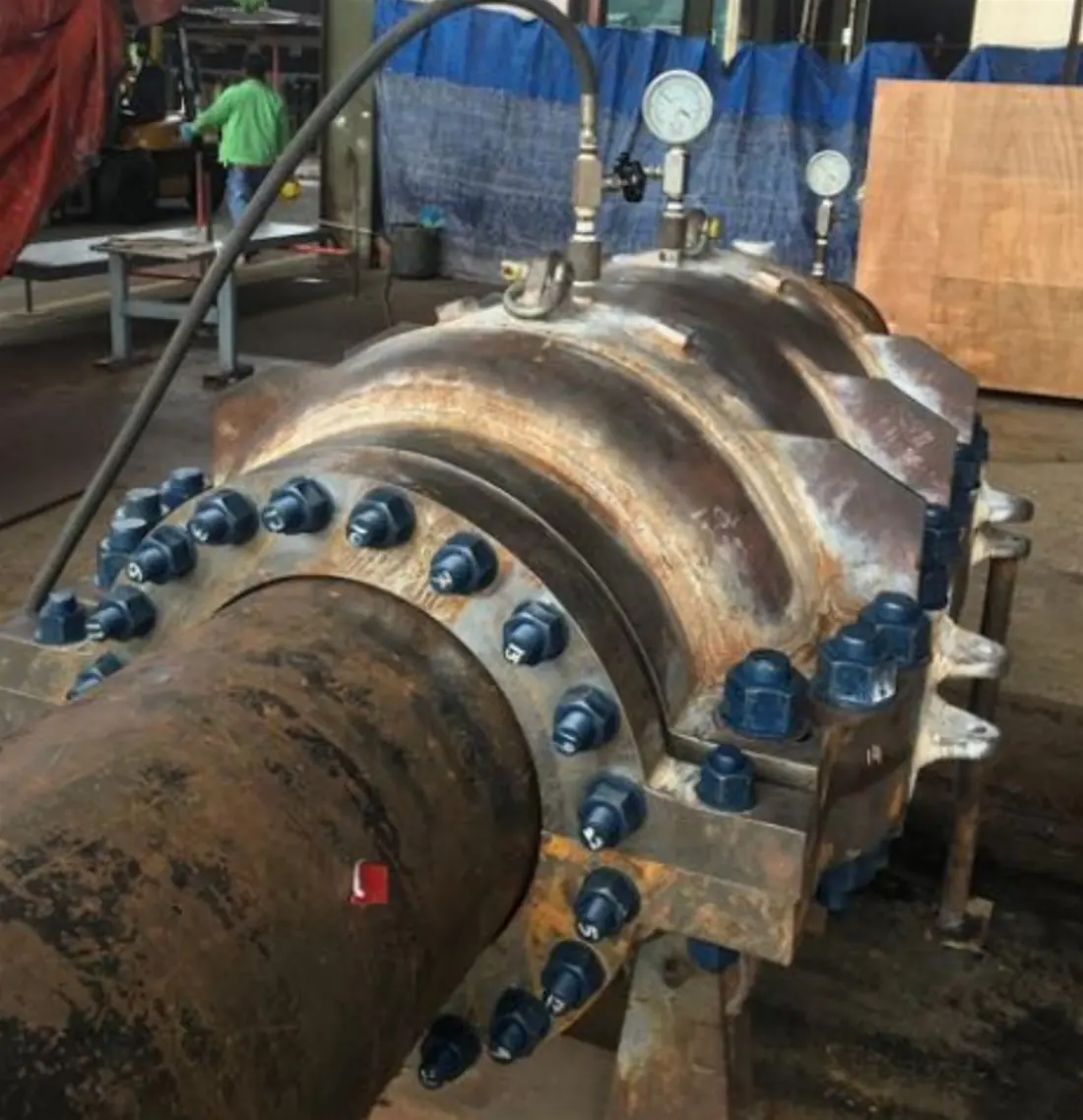

Workshop · pressure testSleeve under pressure test in the workshop. -

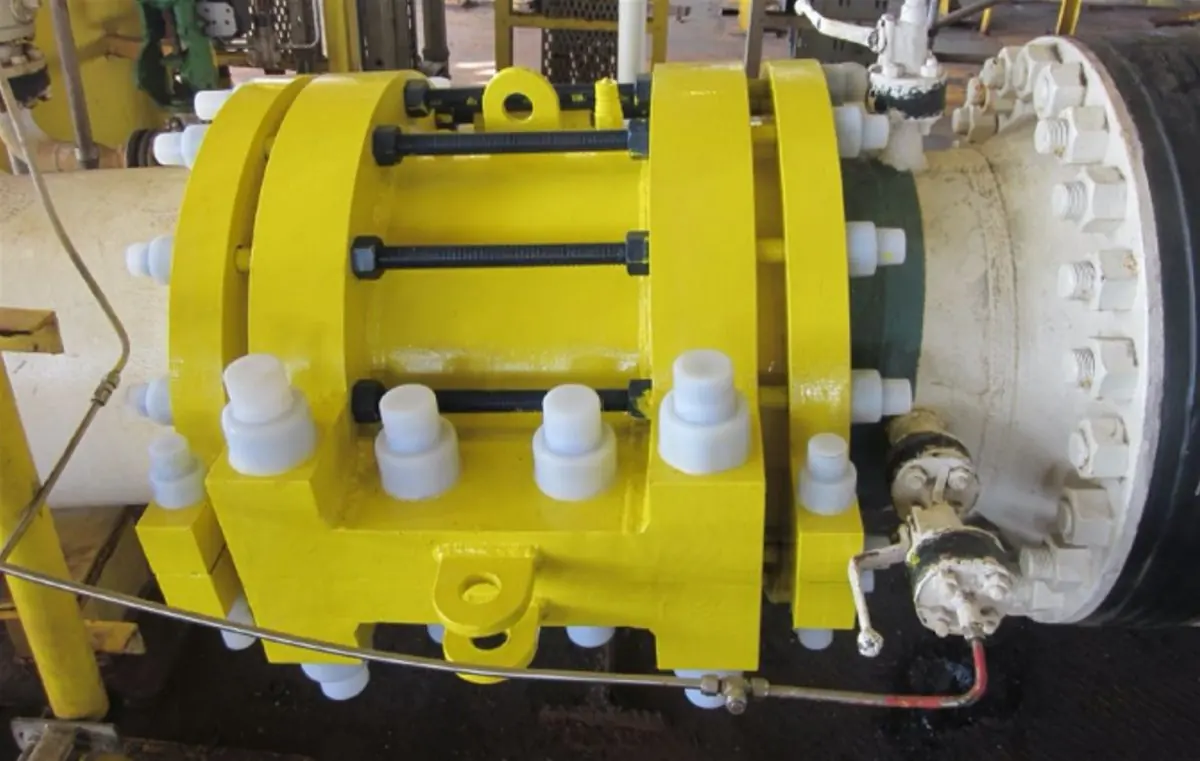

Topside · process pipingSleeve installed on topside process piping.
Photo: manufacturing partner.
Track record of our repair technology
- Projects delivered
- 100+
- Countries
- 8
- Years in repair engineering
- 23+
03 / Also in the repair range
Other repair systems
Every repair is engineered for its project.
Technical data and the right configuration depend on the asset and its condition. Write to us and we will take it from there.
